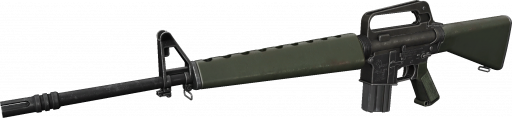

M601
| Factions | Weapon | Icon | Classes | Ammo |
|---|---|---|---|---|
 US |
 M601 |
 |
 Assault |
20+1 / 60 |
| Damage Base | Headshot × | Chest × | Stomach × | Leg × | Arm × | Bayonet | Rifle Grenades | Reload Speed | |
|---|---|---|---|---|---|---|---|---|---|
| Partial | Empty | ||||||||
| 37 | ×2.5 = 92.5 | ×1.2 = 44.4 | ×1.15 = 42.55 | ×0.8 = 29.6 | ×0.75 = 27.75 | YES | NO | 2.366 Seconds | 3.166 Seconds |
| Designation | Weapon Type | Fire Modes | Fire Rate | Bullet Spread ° | Range Modifier | Muzzle Velocity | Projectile weight | Weight |
|---|---|---|---|---|---|---|---|---|
| M601 | Assault Rifle | Auto+Semi | 750 RPM | 7.17° & 1.15° ADS | 0.955 | 960 m/s | 12.3 g (189.818 gr) | 2.89 kg (6.37 lbs) |
| Full name | Caliber | Place of Origin | Date | Manufacturer | Barrel Length | Total Length | Weapon Script Name |
|---|---|---|---|---|---|---|---|
| Colt AR-15 Model 601 | 5.56mm | USA | 1959 | Colt | 20 in (508 mm) | 39 in (991 mm) | weapon_M601 |
HISTORY
Colt's first two models produced after the acquisition of the rifle from ArmaLite were the 601 and 602, and these rifles were in many ways clones of the original ArmaLite rifle (in fact, these rifles were often found stamped Colt ArmaLite AR-15, Property of the U.S. Government caliber .223, with no reference to them being M16s).
The 601 and 602 are virtually identical to the later M16 rifle without the forward-assist. Like the later M16 rifle their charging handle was re-located from under the carrying handle like AR-10 to the rear of the receiver. They were equipped with triangular fore-stocks and occasionally green or brown furniture. Their front sight had a more triangular shape. They had flat lower receivers without raised surfaces around the magazine well. Their bolt hold open device lacked a raised lower engagement surface and had a slanted and serrated surface that had to be engaged with a bare thumb, index finger, or thumb nail because of the lack of this surface. Their fire-selector was also changed from upward = safe, backward = semi-auto and forward = full-auto, to the now familiar forward = safe, upward = semi-auto, and backward = full-auto of the M16 rifle.
The only major difference between the 601 and 602 is the switch from the original four grooves, right-hand 1:14-inch (1:355.6 mm or 64 calibers) rifling twist rate to the more common four grooves, right-hand 1:12-inch (1:304.8 mm or 54.8 calibers) twist. This was done as the original 1:14-inch twist rate to just stabilize the 55 grain bullet used in the 5.56 Ball M193 cartridge under unfavorable conditions could induce too much yaw and due to the resulting excessive in flight bullet destabilization become inaccurate. The one turn in 12 inches increased accuracy and was optimized to adequately stabilize the M193 ball and longer M196 tracer bullets.
SOURCE
Go here to read about The Evolution Of The Colt Model 601
President John F. Kennedy and Military Aide Gen. Chester V. Clifton examine a Colt Model 601 rifle and crossbow in the White House’s Oval Office in April 1963.

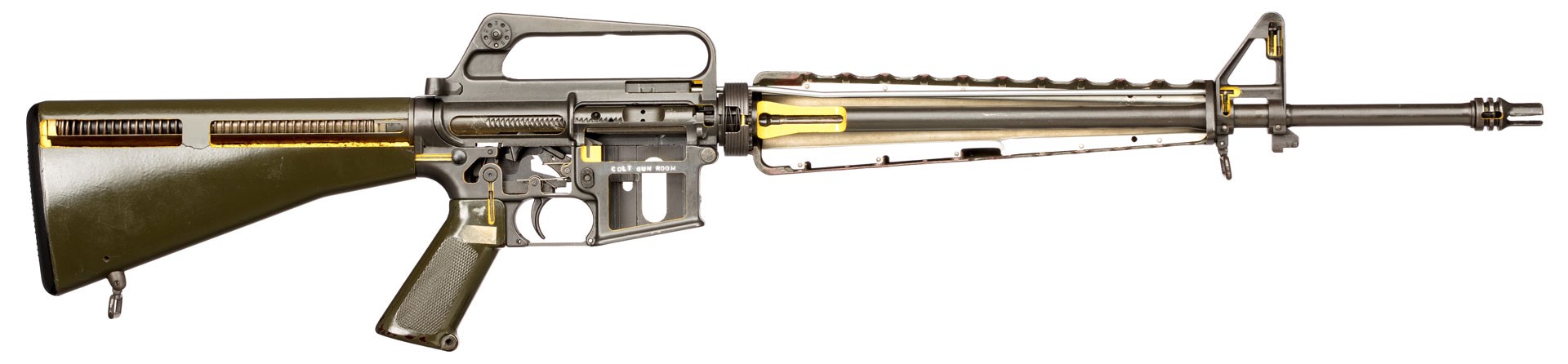

Right side view of a Colt/ArmaLite AR-15 Model 601 cutaway that reveals details of the rifle’s gas tube, the left handguard’s single heat shield and the early Edgewater buffer. Photo courtesy of the Institute for Military Technology

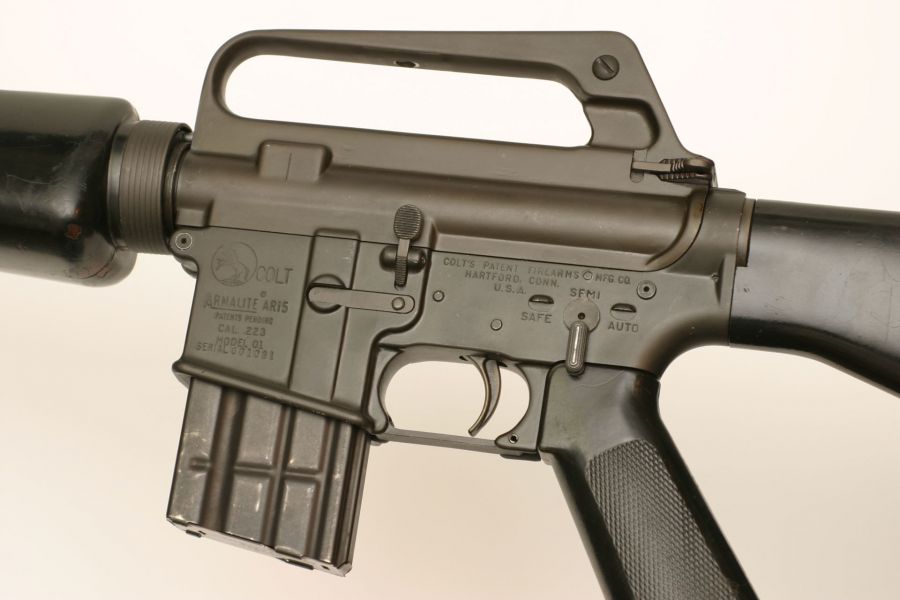

Left side closeup of Colt/ArmaLite Model 601 Serial No. 001081. The rifle’s original green painted furniture has been replaced by black painted furniture.
Indonesian female volunteer paratroopers armed with Colt/ArmaLite AR-15 Model 601 rifles - June 1965.
A U.S. Navy SEAL armed with a Colt/ArmaLite Model 601 is seen here during a training exercise on St. Thomas, U.S. Virgin Islands on February 21, 1963. Photo by Marion S. Trikosko/US News and World Report Collection/PhotoQuest/Getty Images
